# Drag minimization over an obstacle in Stokes-flow¶

Section author: Jørgen S. Dokken <dokken@simula.no>

This demo solves the famous shape optimization problem for minimizing drag over an obstacle subject to Stokes flow. This problem was initially analyzed by [1E-Pir74] where the optimal geometry was found to be a rugby shaped ball with a 90 degree front and back wedge.

We start with a circular obstacle in a duct, with an inlet on the left hand side, outlet on the right hand side, and no-slip walls on the top and the bottom.

## Shape optimization¶

We define the change of the fluid domain from its unperturbed state $$\Omega_0$$, as $$\Omega(s)=\{x+s(h)\vert x\in \Omega_0 \}$$, , and $$s$$ is solving a linear elasticity problem [1E-SS16] with a variable Lamé parameter $$\mu$$.

(1)$\begin{split}\mathrm{div}(\sigma) &= 0 \qquad \text{in } \Omega_0 \\ s&=0 \qquad \text{on} \ \Lambda_1\cup\Lambda_2\cup\Lambda_3,\\ \frac{\partial s}{\partial n} &= h \qquad \text{on} \ \Gamma.\\\end{split}$

where

$\begin{split}\sigma &:= \lambda_{elas} \mathrm{Tr}(\epsilon)I + 2\mu_{elas}\epsilon \\ \epsilon &:=\frac{1}{2}(\nabla s + \nabla s^T)\end{split}$

is the stress and strain tensors, respectively. We set $$\lambda_{elas}=0$$, and let $$\mu_{elas}$$ solve

$\begin{split}\Delta \mu_{elas} = 0& \qquad \text{in } \Omega_0 \\ \mu_{elas} = 1 &\qquad \text{on} \ \Lambda_1\cup\Lambda_2\cup\Lambda_3\\ \mu_{elas} = 500& \qquad \text{on} \ \Gamma\end{split}$

As opposed to [1E-SS16], we do not use the the linear elasticity equation as a Riesz-representation of the shape derivative. We instead use the stresses $$h$$ in (1) as the design parameters for the problem.

## Problem definition¶

This problem is to find the shape of the obstacle $$\Gamma$$, which minimizes the dissipated power in the fluid

$\min_{h,u,s} \int_{\Omega(s)} \sum_{i,j=1}^2 \left( \frac{\partial u_i}{\partial x_j}\right)^2~\mathrm{d} x +\alpha\Big(\mathrm{Vol}(\Omega(s))-\mathrm{Vol}(\Omega_0)\Big)^2 + \beta\sum_{j=1}^2 \Big(\mathrm{Bc}_j(\Omega(s)) -\mathrm{Bc}_j(\Omega_0)\Big)^2,$

where $$\mathrm{Vol}(\Omega)$$ is the volume and $$\mathrm{Bc}_j(\Omega)$$ is the $$j$$-th component of the barycenter of the obstacle. The state variable $$u$$ is a velocity field subject to the Stokes equations:

(2)$\begin{split}-\Delta u + \nabla p &= 0 \qquad \mathrm{in} \ \Omega(s), \\ \mathrm{div}(u) &= 0 \qquad \mathrm{in} \ \Omega(s), \\ u &= 0 \qquad \mathrm{on} \ \Gamma(s)\cup\Lambda_1,\\ u &= g \qquad \mathrm{on} \ \Lambda_2, \\ \frac{\partial u }{\partial n} + pn &= 0 \qquad \mathrm{on} \ \Lambda_3,\end{split}$

where $$\Lambda_1$$ are the walls, $$\Lambda_2$$ the inlet and $$\Lambda_3$$ the outlet of the channel.

## Implementation¶

First, the dolfin and dolfin_adjoint modules are imported:

from dolfin import *
set_log_level(LogLevel.ERROR)


Next, we load the facet marker values used in the mesh, as well as some geometrical quantities mesh-generator file.

from create_mesh import inflow, outflow, walls, obstacle, c_x, c_y, L, H


The initial (unperturbed) mesh and corresponding facet function from their respective xdmf-files.

mesh = Mesh()
with XDMFFile("mesh.xdmf") as infile:
mvc = MeshValueCollection("size_t", mesh, 1)
with XDMFFile("mf.xdmf") as infile:
mf = cpp.mesh.MeshFunctionSizet(mesh, mvc)


We compute the initial volume of the obstacle

one = Constant(1)
Vol0 = L*H - assemble(one*dx(domain=mesh))


We create a Boundary-mesh and function space for our control $$h$$

b_mesh = BoundaryMesh(mesh, "exterior")
S_b = VectorFunctionSpace(b_mesh, "CG", 1)
h = Function(S_b, name="Design")

zero = Constant([0]*mesh.geometric_dimension())


We create a corresponding function space on $$\Omega$$, and transfer the corresponding boundary values to the function $$h_V$$. This call is needed to be able to represent $$h$$ in the variational form of $$s$$.

S = VectorFunctionSpace(mesh, "CG", 1)
s = Function(S, name="Mesh perturbation field")
h_V = transfer_from_boundary(h, mesh)
h_V.rename("Volume extension of h", "")


We can now transfer our mesh according to (1).

def mesh_deformation(h):
# Compute variable :math:\mu
V = FunctionSpace(mesh, "CG", 1)
u, v = TrialFunction(V), TestFunction(V)

l = Constant(0)*v*dx

mu_min=Constant(1, name="mu_min")
mu_max=Constant(500, name="mu_max")
bcs = []
for marker in [inflow, outflow, walls]:
bcs.append(DirichletBC(V, mu_min, mf, marker))
bcs.append(DirichletBC(V, mu_max, mf, obstacle))

mu = Function(V, name="mesh deformation mu")
solve(a==l, mu, bcs=bcs)

# Compute the mesh deformation
S = VectorFunctionSpace(mesh, "CG", 1)
u, v = TrialFunction(S), TestFunction(S)
dObstacle = Measure("ds", subdomain_data=mf, subdomain_id=obstacle)

def epsilon(u):
def sigma(u,mu=500, lmb=0):
return 2*mu*epsilon(u) + lmb*tr(epsilon(u))*Identity(2)

L = inner(h, v)*dObstacle

bcs = []
for marker in [inflow, outflow, walls]:
bcs.append(DirichletBC(S, zero, mf, marker))

s = Function(S, name="mesh deformation")
solve(a==L, s, bcs=bcs)
return s


We compute the mesh deformation with the volume extension of the control variable $$h$$ and move the domain.

s = mesh_deformation(h_V)
ALE.move(mesh, s)


The next step is to set up (2). We start by defining the stable Taylor-Hood finite element space.

V2 = VectorElement("CG", mesh.ufl_cell(), 2)
S1 = FiniteElement("CG", mesh.ufl_cell(), 1)
VQ = FunctionSpace(mesh, V2*S1)


Then, we define the test and trial functions, as well as the variational form

(u, p) = TrialFunctions(VQ)
(v, q) = TestFunctions(VQ)
l = inner(zero, v)*dx


The Dirichlet boundary conditions on $$\Gamma$$ is defined as follows

(x,y) = SpatialCoordinate(mesh)
g = Expression(("sin(pi*x[1])","0"),degree=2)
bc_inlet = DirichletBC(VQ.sub(0), g, mf, inflow)
bc_obstacle = DirichletBC(VQ.sub(0), zero , mf, obstacle)
bc_walls = DirichletBC(VQ.sub(0), zero, mf, walls)
bcs = [bc_inlet, bc_obstacle, bc_walls]


We solve the mixed equations and split the solution into the velocity-field $$u$$ and pressure-field $$p$$.

w = Function(VQ, name="Mixed State Solution")
solve(a==l, w, bcs=bcs)
u, p = w.split()

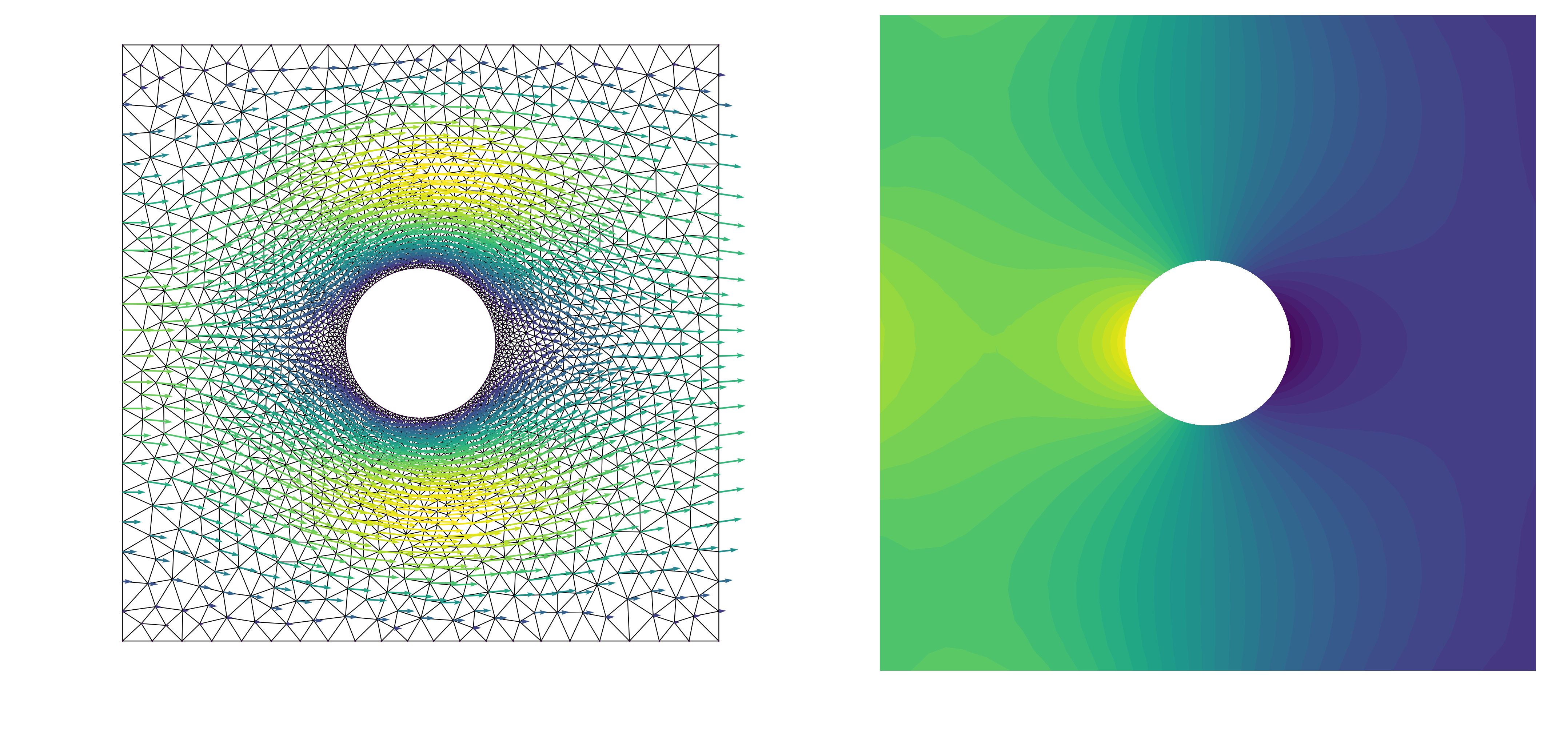

Plotting the initial velocity and pressure

import matplotlib.pyplot as plt
plt.figure()
plt.subplot(1,2,1)
plot(mesh, color="k", linewidth=0.2, zorder=0)
plot(u, zorder=1, scale=20)
plt.axis("off")
plt.subplot(1,2,2)
plot(p, zorder=1)
plt.axis("off")


We compute the dissipated energy in the fluid volume, $$\int_{\Omega(s)} \sum_{i,j=1}^2 \left(\frac{\partial u_i}{\partial x_j}\right)^2~\mathrm{d} x$$

J = assemble(inner(grad(u), grad(u))*dx)


Then, we add a weak enforcement of the volume contraint, $$\alpha\big(\mathrm{Vol}(\Omega(s))-\mathrm{Vol}(\Omega_0)\big)^2$$.

alpha = 1e4
Vol = assemble(one*dx(domain=mesh))
J += alpha*((L*H - Vol) - Vol0)**2


Similarly, we add a weak enforcement of the barycenter contraint, $$\beta\big(\mathrm{Bc}_j(\Omega(s))-\mathrm{Bc}_j(\Omega_0)\big)^2$$.

Bc1 = (L**2*H/2 - assemble(x*dx(domain=mesh))) / (L*H - Vol)
Bc2 = (L*H**2/2 - assemble(y*dx(domain=mesh))) / (L*H - Vol)
beta = 1e4
J+= beta*((Bc1 - c_x)**2 + (Bc2 - c_y)**2)


We define the reduced functional, where $$h$$ is the design parameter# and use scipy to minimize the objective.

Jhat = ReducedFunctional(J, Control(h))
s_opt = minimize(Jhat,tol=1e-6, options={"gtol": 1e-6, "maxiter": 50, "disp":True})

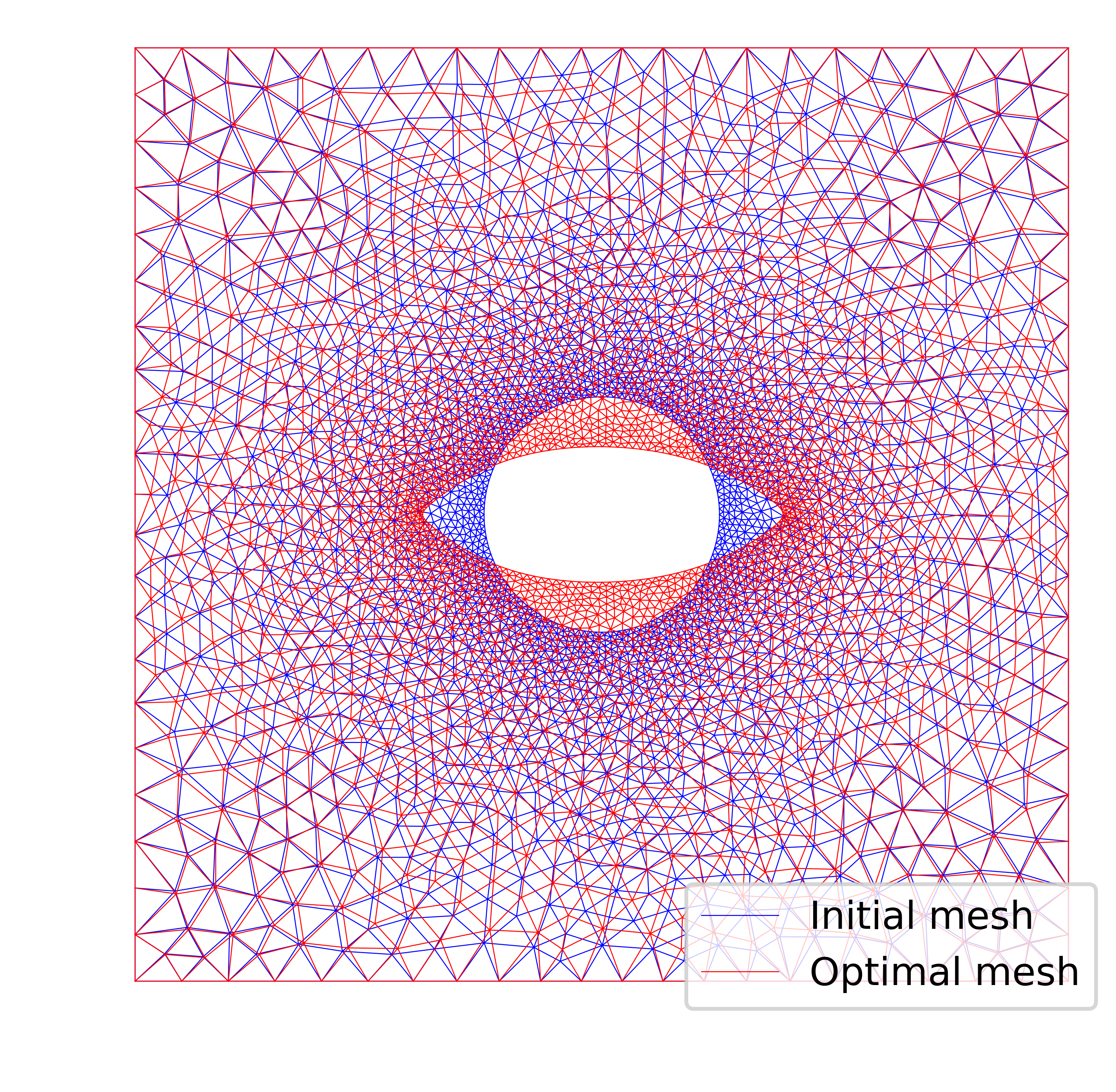

# We evaluate the functional with the optimal solution and plot
# the initial and final mesh
plt.figure()
Jhat(h)
initial, _ = plot(mesh, color="b", linewidth=0.25, label="Initial mesh")
Jhat(s_opt)
optimal, _ = plot(mesh, color="r", linewidth=0.25, label="Optimal mesh")
plt.legend(handles=[initial, optimal])
plt.axis("off")


In addition, we perform a Taylor-test to verify the shape gradient and Hessian. We compute the convergence rates and check that they correspond to the expected values.

perturbation = interpolate(Expression(("-A*x[0]", "A*x[1]"),
A=5000,degree=2), S_b)
results = taylor_to_dict(Jhat, Function(S_b), perturbation)
assert(min(results["R0"]["Rate"])>0.9)
assert(min(results["R1"]["Rate"])>1.95)
assert(min(results["R2"]["Rate"])>2.95)


 [1E-Pir74] Olivier Pironneau. On optimum design in fluid mechanics. Journal of Fluid Mechanics, 64(1):97–110, 1974. doi:10.1017/S0022112074002023.
 [1E-SS16] (1, 2) Volker Schulz and Martin Siebenborn. Computational comparison of surface metrics for PDE constrained shape optimization. Computational Methods in Applied Mathematics, 16(3):485–496, 2016. doi:10.1515/cmam-2016-0009.
